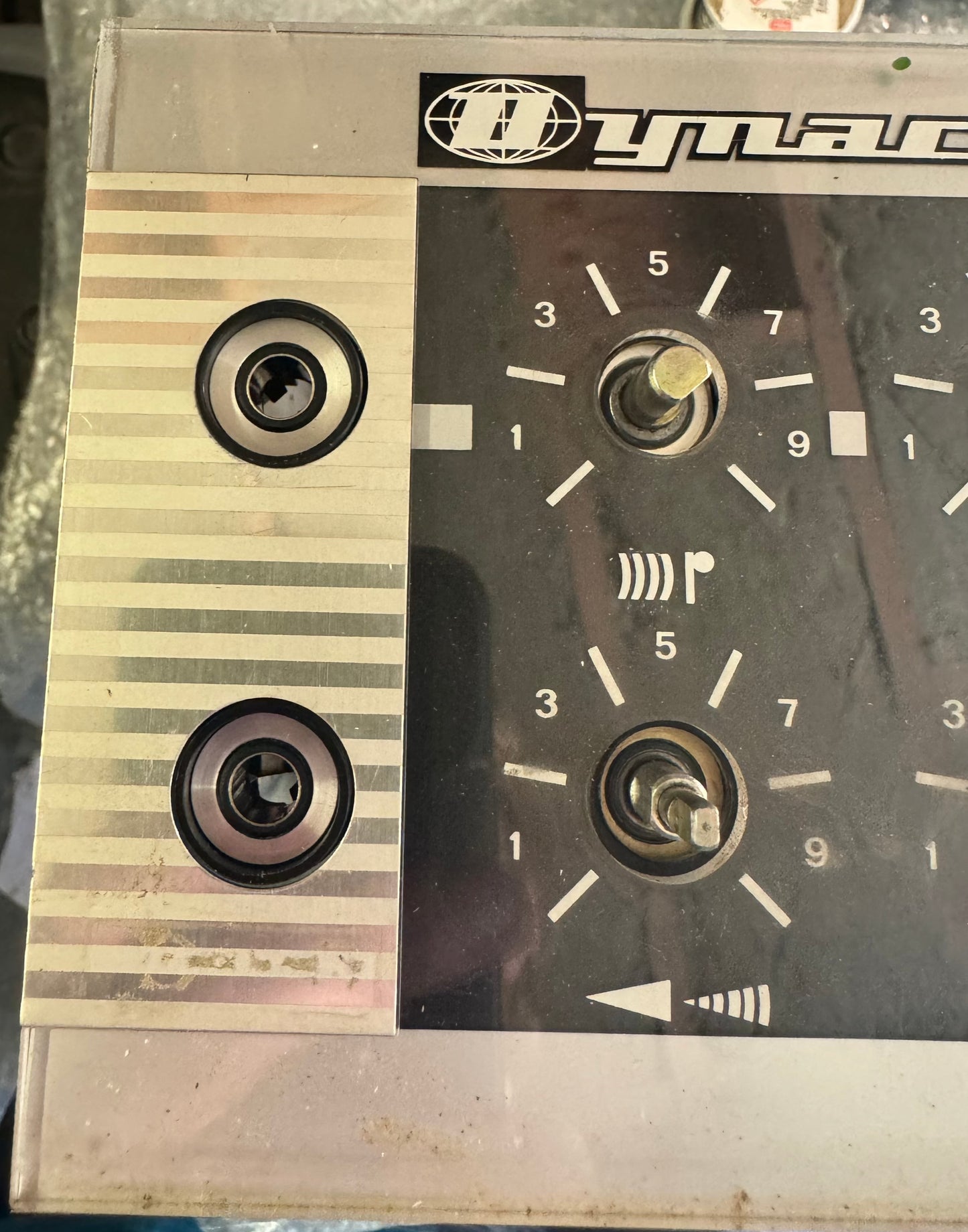

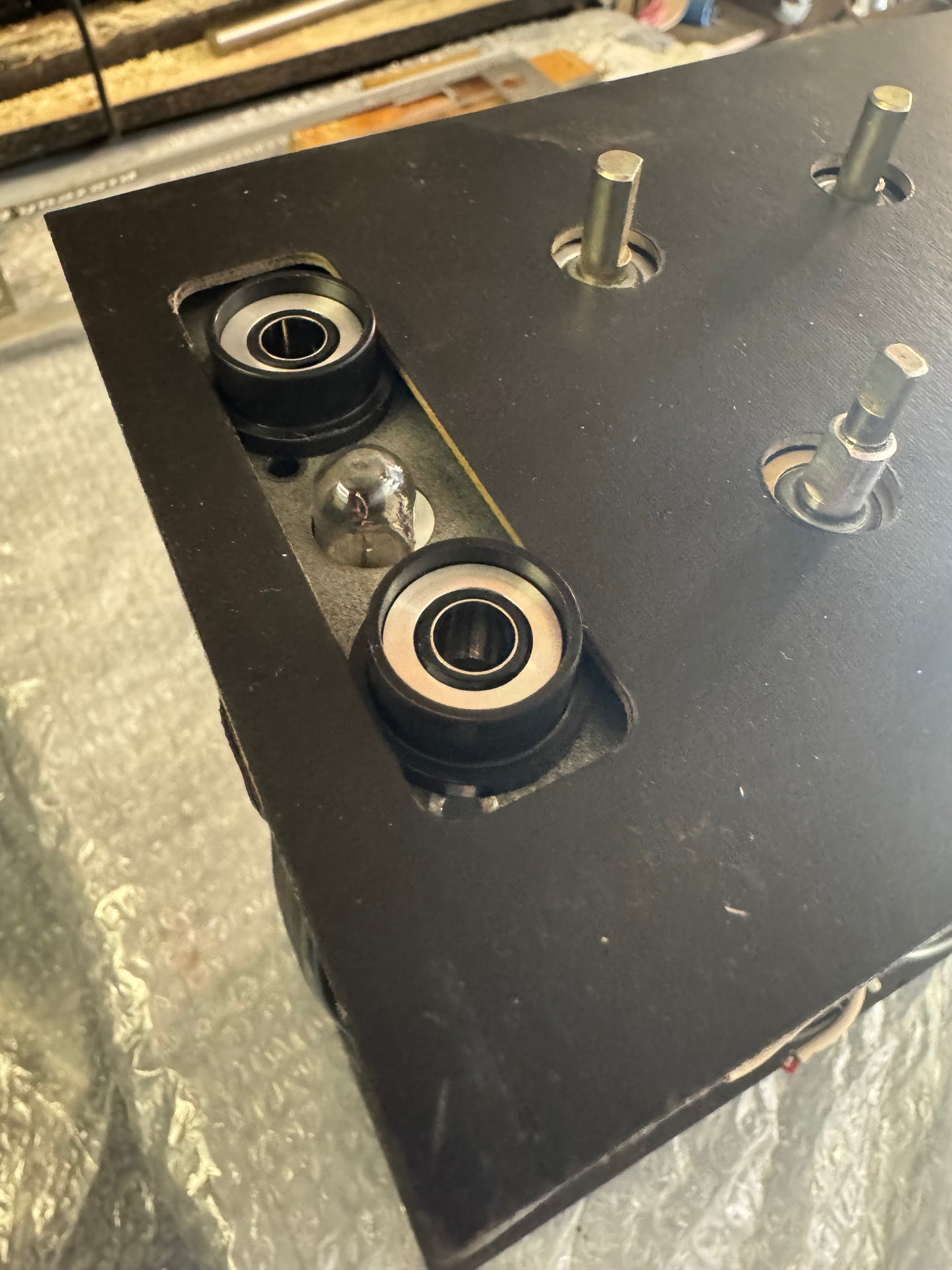

Dynachord Echochord 17mm DIN to 1/4” Jack Adapter (Front)

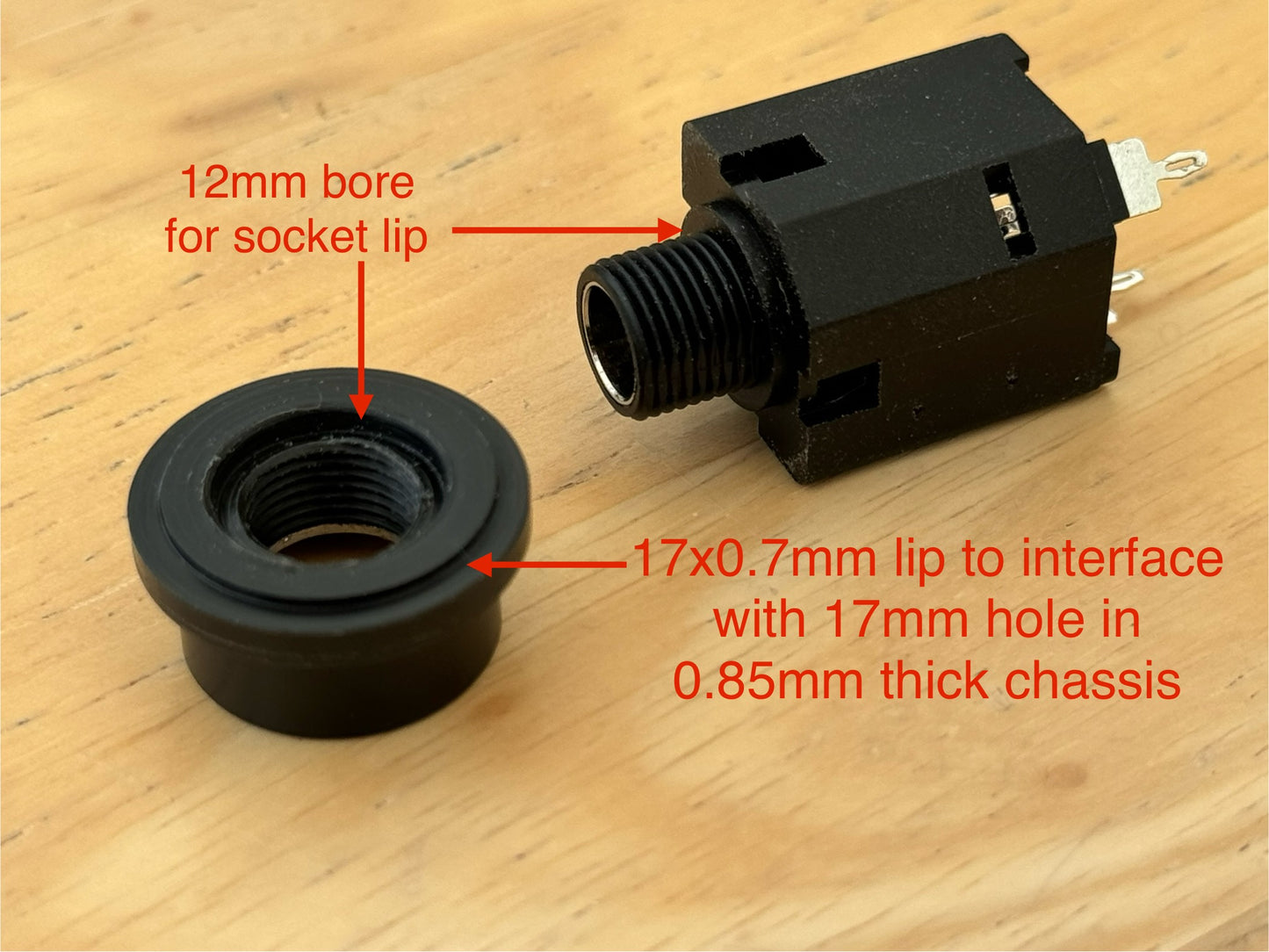

Fits the 17mm Dynachord DIN socket holes. Includes jack socket. Made from delrin to provide isolation between chassis and audio ground.

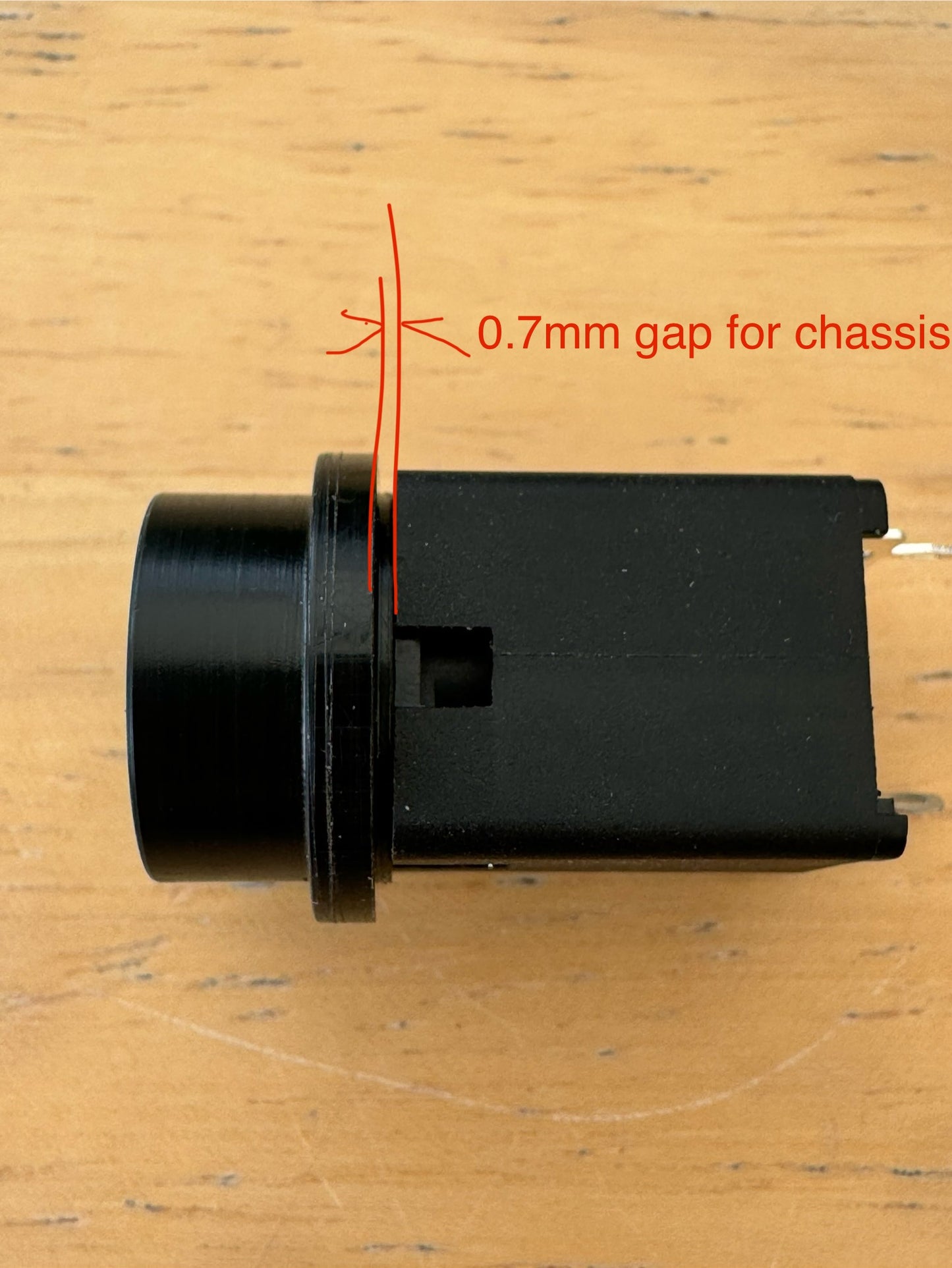

• Minimum chassis thickness - 0.75mm
• Height protruding above front of chassis - 9.5mm
• Jack cable recess diameter - 15mm
• Thread size - 3/8” x 32

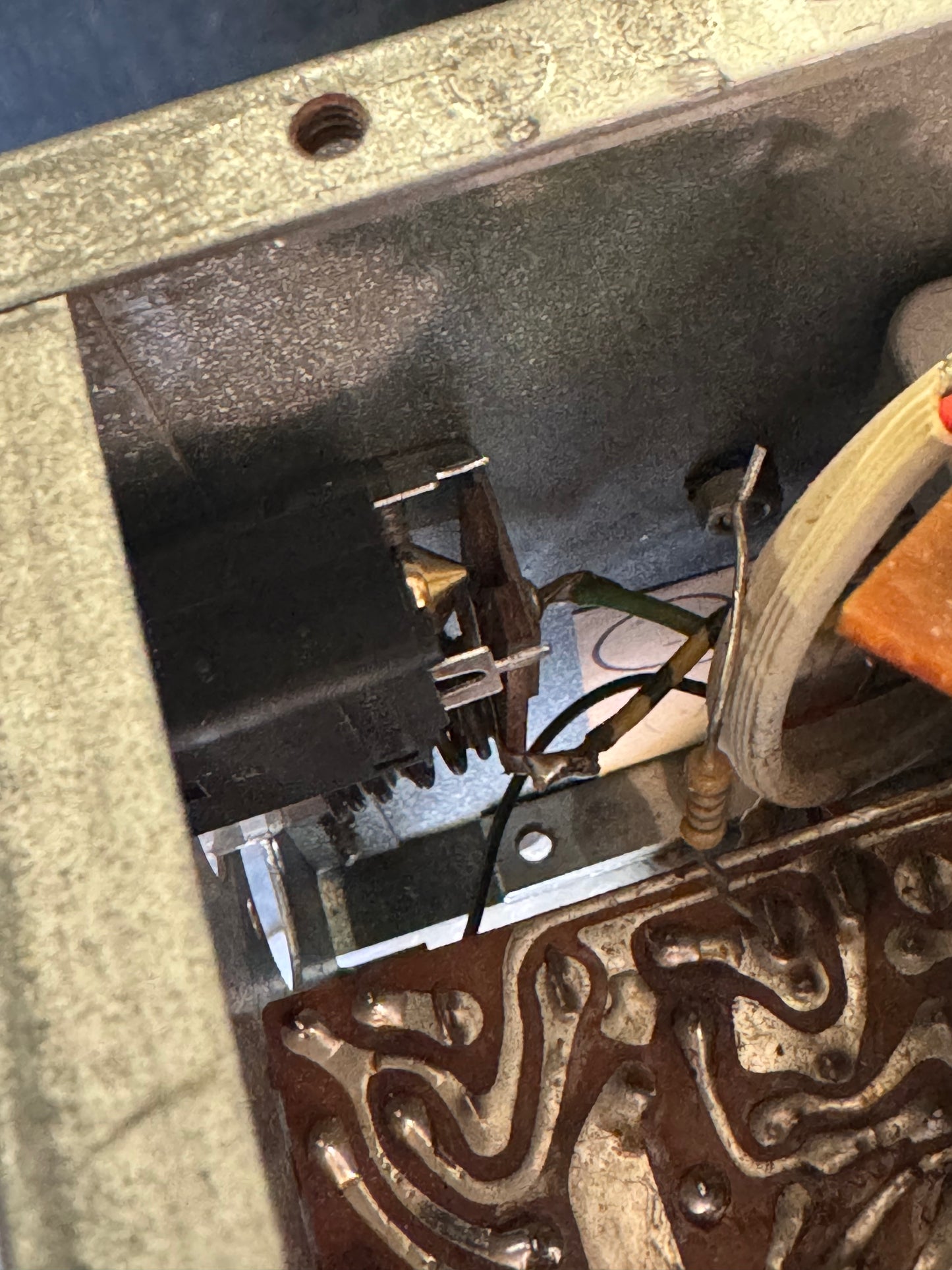

 Please note: some modification to the jack socket case may be required to clear the bulb holder.
